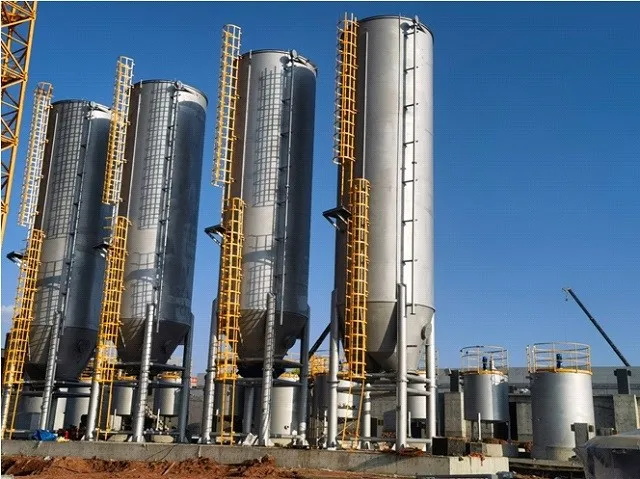

Wuxi Hengke Environmental Protection - Customized To Your Every Storage Silo System
As one of China's leading lime silo manufacturers, we have customized storage silo systems for over 300 projects. Senior engineers with over 20 years of industry experience lead our technical team in providing precise solutions for every unique site.
-
Lime Storage SiloThe structural standard for lime silos is ICS 23.020.10 (NB/T47003.2-2009). The mechanical standard for silo design is JB/T4735. The electrical design complies with the electrical standards DIN 60947read more
-
Lime Powder SiloLime powder silo is an important process equipment component for high-dryness dewatering of sludge, waterworks, and sewage treatment plants. A complete set of lime steel silo, precise powder dosing,read more
-
Lime Storage TankThe lime storage tank is a sealed container for storing bulk lime powder, which is composed of a lime storage steel silo, a level gauge, a feed pipe, a dust removal device, arch breaking andread more
-
Sealing Steel Silos For Lime StorageThe Sealing Steel Silos for Lime Storage is a closed tank for storing bulk materials, suitable for storing various bulk materials such as lime powder, cement, and fly ash.read more
-
Industrial Silos Lime Storage TanksThe industrial silos lime storage tanks consists of the following components:. (1) Lime powder silo (dust collection device, level gauge, arch breaking device, climbing ladder, fence);. (2) Vibrationread more
-
Lime Storage Silos And Complete Lime Store SystemsLime storage silos and complete lime storage systems are important process equipment components for sludge high-dryness dehydration, water treatment plants, and sewage treatment plants.read more
-
Hydrated Lime Silo SystemsThe Hydrated Lime Silo Systems consists of a feed pipe, a dust collector at the top of the silo, a pressure vacuum release valve, a silo, a vibrating silo bottom discharger, a manual flapper valve, aread more
-
Lime Storage And Dosing SystemLime Storage and dosing system is an important part of various water treatment and sludge treatment processes. The system includes powder storage, transportation, metering and mixing, and limeread more
-
Hydrated Lime Handling SystemsThe Hydrated lime handling systems generally has a variety of specifications such as 10m3, 20m3, 30m3, 40m3, 50m3, 60m3, 70m3 and so on. It can also be produced according to the size required by theread more
-
Storage Silo For Dry BulksStorage Silo for Dry Bulks follow strict physical/chemical test procedures: meet product design and process requirements, and provide reliable test data.read more
-
Lime Powder Silo Powder TanksThe Lime Powder Silo Powder Tanks has the characteristics of simple equipment operation, continuous dosing and stable dosing amount.read more
-
Mild Steel Silo TankMild Steel Silo Tanks include: silos, dust collectors on the top of the silo, safety valves, arch breaking devices, star feeders, screw conveyors, level gauges, etc. Among them, the arch breakingread more
Technical Data of Silo Storage System
| Model |
LB10
|
LB20
|
LB30
|
LB40
|
LB50
|
LB60
|
LB80
|
LB100
|
LB150
|
LB200
|
LB300
|
| Storage Silo Capacity (m3) | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 150 | 200 | 300 |
| Silo Diameter (m) | 2.42 | 2.42 | 3 | 3 | 3 | 3.2 | 3.2 | 3.2 | 4 | 6 | 6 |
| Height Of Silo Straight Section (m) | 3 | 4.5 | 4.5 | 5.5 | 7.5 | 7.5 | 9 | 12 | 12 | 6 | 10.5 |
| Total Height Of Silo (m) | 8 | 9.5 | 10 | 11 | 13 | 13 | 14.5 | 17.5 | 18.5 | 15 | 20.5 |
| Activation Hopper | HKB90, 0.16kW (380V, 50Hz) ×1 Set | HKB 125, 0.3kW (380V, 50Hz) ×1 Set | HKB 150 | HKB 180 | |||||||
| Silo Outlet Valve | DN200 | DN250 | DN300 | ||||||||
| Rotary Discharge Valve | 0.75kW (380V, 50Hz) ×1 unit, Forced cooling independent fan motor |
1.1kW (380V, 50Hz) ×1 unit, Forced cooling independent fan motor |
|||||||||
| Silo Top Dust Collector | Filter area 22m2 | ||||||||||
| Safety Valve | VCP2731B | ||||||||||
| Dissolving Tank Capacity (m3) | 5m3×1 set | ||||||||||
| Dissolving Tank Mixer | 1.5kW (380V, 50Hz) ×1 set | ||||||||||
| Storage Tank Capacity | 5m3×1 set | ||||||||||
| Storage Tank Mixer | 1.5kW (380V, 50Hz) ×1 set | ||||||||||
| Water Inlet Pipe Diameter | DN50 (Can be adjusted according to the actual needs of the project) | ||||||||||
| Dosing Diameter | DN32 (Can be adjusted according to the actual needs of the project) | ||||||||||
| Overflow and Emptying Pipe Diameter | DN80 (Can be adjusted according to the actual needs of the project) | ||||||||||
| Inlet Flow Rate And Pressure | 6~20m³/h, 0.3~0.4Mpa | ||||||||||
| Screw Feeder |
The power is determined based on the length of the on-site layout x 1 unit, the designed conveying capacity is determined based on the on-site usage |
||||||||||
| Dosing Pump | The flow rate, power, and quantity are determined based on the on-site usage situation | ||||||||||
| Booster Pump | The flow rate, power, and quantity are determined based on the on-site usage situation | ||||||||||
| weighing System | Optional leg weighing, weighing bucket weighing, and dissolution tank weighing | ||||||||||
| Manufacture | Processed, pre-assembled, and shipped separately in the factory | On site manufacturing | |||||||||
Structure Diagram Of Silo Systems
Main Structural Components
(1) Silo: Capacity 10-300m³.
(2) Top Dust Collector: Pulse back blowing cylindrical dust collector, high purification efficiency.
(3) Safety Valve: A pressure safety valve specifically designed for the silo to provide safety protection in the system.
(4) Activation Hopper: Effectively prevents material from arching, clogging, and sticking within the silo.
(5) Pneumatic Butterfly Valve: Installed below the activation hopper, used to open and close the outlet of the silo.
(6) Screw Conveyor: Uses rotating screw blades to move lime powder along the spiral tube for conveying work.
(7) Feed Pipe: DN100 diameter, made of seamless steel pipe according to national standards, with reliable strength.
(8) Powder Filter: Effectively filters impurities from powders, ensuring the normal and stable operation of the silo system.
(9) Soft Connection: It compensates for displacement and stress caused by equipment vibration and powder conveying, and also helps adjust for assembly errors.
(10) Level Gauge: It adopts a resistance rotary level switch, installed on the side wall of the silo, and sets three levels: high, medium, and low.
(11) Top Guardrail: Install guardrails along the edge of the silo at the top of the silo for easy access to equipment and maintenance.
(12) Steel Ladder: The steel ladder is installed on the side wall of the silo for easy access to the top of the silo for equipment maintenance.
(13) Liquid Level Gauge: An ultrasonic liquid level gauge, installed on the top of the dissolving tank, continuously monitors the liquid level within the tank.
(14) Electrical Control Cabinet: The main electrical components are from Siemens and Schneider brands, with reliable quality to ensure stable silo system operation.

Optional
Star-shaped Unloader: Can uniformly, continuously, and quantitatively feed the screw conveyor.
Auxiliary Flow Air Disc: Either 8 or 4 auxiliary flow air discs are installed based on the silo’s diameter.
Chemical Dissolving Tank: Set beside or below the silo, and the powder conveyed by the screw conveyor is mixed with water, dissolved, and prepared into lime lotion for storage.
Agitator: The paddle-type agitator is vertically installed at the top of the dissolving tank. With its high speed, it effectively mixes the liquid, enabling the powder to dissolve quickly.
Water Mist Dust Collector: Installed on the top of the chemical dissolving tank, can effectively prevent dust from overflowing.
Automatic Inlet Valve: Installed on the inlet pipeline of the solvent tank, an electromagnetic valve or pneumatic butterfly valve can be selected.
Inlet Pipeline Component: Effectively filters impurities in the water source and visually displays the water pressure and volume of the inlet water.
FAQ
Q1: What industry standards do HENGKE silo storage systems follow?
* Standard for determining storage silo load: ICS 23.020.10;
* Mechanical standard for storage silo design: JB/T4735;
* The structural standard that the storage tank complies with: JB/T4735;
* Manufacturing/welding standards for storage silos and tanks: JB/T4735;
* Electrical compliance with electrical standards: DIN 60947; EN 61000-6.
Q2: What materials are compatible with the silo system?
A: We have successfully used the following materials:
* Lime powder (including quicklime and hydrated lime powder);
* Sodium carbonate powder;
* Magnesium oxide powder;
* Activated carbon powder, etc.
Q3: What industries are the silo systems suitable for?
A: We have successfully implemented silo storage systems for over 200 applications. These include municipal wastewater treatment plants, semiconductor manufacturing, zero-discharge wastewater management in industrial parks, photovoltaics, steel, coal chemical industry, and lime mining.
Q4: How can I obtain successful silo system case studies for reference?
A: Please specify your industry and we will email you case studies (with customer privacy information removed) within 1-2 business days. We can also provide indirect communication channels with case study customers upon request (subject to customer consent) to share their actual user experiences.
Q5: How is the quality of the silo system guaranteed?
A: Quality is one of our core competitive advantages, and we rigorously control the entire process from design to delivery:
Design Phase: Senior engineers will lead a design review, combining your requirements with industry standards (e.g., structural strength, safe material storage specifications) to ensure the design drawings are free of technical flaws.
Production Phase: We select raw materials that meet regulatory standards, and assign dedicated personnel to inspect key processes (e.g., welding, anti-corrosion treatment) to prevent shoddy workmanship and process deviations.
Factory Inspection: Each silo system undergoes a comprehensive performance test and pre-assembly before shipment. Delivery is only scheduled after passing these tests.
Reputation-Driven: We prioritize long-term reputation, and the majority of our customers are repeat customers. Our quality control standards are far higher than those of our peers. Over 200 successful operational cases demonstrate the consistent quality and reliability of our products.
Q6: What is the warranty period and after-sales service for the silo system after delivery?
A:HENGKE prioritizes responsible and timely after-sales service, providing full-life support for every customer:
Installation Guidance: We provide detailed installation drawings and video tutorials. On-site installers can independently complete the installation of the entire silo system by following our detailed and clear installation manual without the need for technical guidance from our company. If on-site support is required, we can arrange for our technical team (or coordinate with a local partner) to provide on-site guidance to ensure the system is assembled correctly.
Daily Maintenance: Upon delivery, we provide an Installation and Commissioning Manual, an Operation and Maintenance Manual, and a Training Plan. These instructions clearly outline daily maintenance key points (such as replacement cycles for wearing parts and maintenance methods). Regular follow-up visits will be conducted to monitor system operating status and proactively remind you of maintenance milestones.
Fault Response: If a system failure occurs, you can quickly contact our technical team via email or video conferencing, and we will provide a troubleshooting solution within 24 hours. If special circumstances require component replacement, we will prioritize international shipping to minimize production downtime.
Long-Term Support: Even after the warranty period has expired, we will continue to provide technical consulting and parts supply services to ensure the long-term stable operation of your silo system.
As one of the leading silo system manufacturers and suppliers in China, we warmly welcome you to buy silo system in stock here from our factory. All custom made products are with high quality and competitive price. Also, OEM service is available.
